| The
R5000 private network authentication server is independently developed by
Chengdu Risetek technology co., LTD in line with the demand for
wireless-network security of financial, government, public security
institutions. This is an industrial product aiming at security authentication
for Internet users. The Sever follows RADIUS standard ,so it can achieve identity
authentication through comprehensive identification of IMSI number, user name
and password. Therefore,R5000 will ensure that the users have complete control
of their own network. Today, R5000 Sever has been widely used in the wireless
industries of higher safety requirements. |
Product panel description
Picture1: Front baffle
Picture2: Rear baffle
Technical parameters
Hardware system
|
Item
|
Content
|
|
CPU
|
Industrial-grade AT91SAM9 embedded processor
200MIPS instruction-computing speed.
|
|
NAND FLASH
|
256MBit
|
|
SDRAM
|
64MBit
|
Power supply
|
Item
|
Content
|
|
supply scope
|
160V～260V(AC)
|
|
Maximum power consumption
|
3.0W
|
Interface types
|
Item
|
Content
|
|
State Key
|
UP,ESC,DOWN,ENTER
|
|
CONSOLE interface
|
One RJ45 CONSOLE interface，Built-in 15 kv ESD protection
Data bits：5、6、7、8 bits
Stop bits：1、1.5、2 bits
Check: no check, parity, odd
parity
Series Rate：110~230400bits/s
Default parameters:115200,N,8,1
|
|
Status
indicator
|
LAN1,LAN2,LAN3,LAN4,TSO,POWR
|
|
Liquid crystal
|
10 Chinese characters in two lines.
|
|
LAN interface
|
Four 10/100M Ethernet ports
(RJ45 socket), adaptive MDI/MDIX, built-in 1.5KV electromagnetic isolation
protection.
|
Physical properties
|
Item
|
Content
|
|
shell
|
high tensile Electrolytic plate(1.2mm),aluminous panel
|
|
Dimensions
|
482MM * 250MM * 44.5MM（1U）
|
|
Net weight
|
2.7kg
|
|
Total weight (including packaging)
|
3.7kg
|
Other parameters
|
Item
|
Content
|
|
Operating temperature
|
-40℃～85℃
|
|
Relative humidity
|
≤85%
|
Product Functions
|
Basic Functions
|
Maximum number of users
|
10000
|
|
Concurrent processing capability
|
50 users’ authentication request at the same time
|
|
Average authentication time
|
About 200 milliseconds
|
|
The log record
|
Hundred thousand records
|
|
Hot standby switching time
|
About 2 seconds
|
|
The Product support a variety of authentication
methods like CHAP, PAP.
|
|
The Product Can set up WEB administrator and
administrative authority
|
|
The Product Support the function of binding
UIM/SIM card, user name, password, and distribution or fixed IP .
|
|
Real-time monitoring user's online situation
|
|
Provide complete log record
|
|
Provide the function of network traffic
measurement(optional)
|
|
Provide configuration information and the import
and export of logs.
|
|

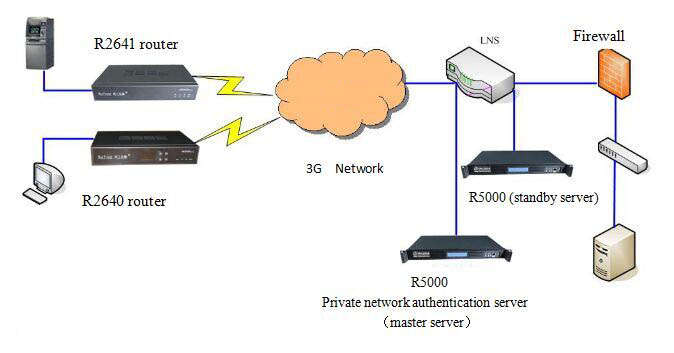

Provide Hot Standby Technology
|
|
|
