| R1610
is designed in accordance with customers’ requirements and characteristics of
businesses and industries. R1610 is a 4G wireless router based on 4G network
for remote data transmission. It can fully meet the networking needs of M2M. R1610
is simple to install and use and easy to maintain. It can be widely used in
many industries including financial industry, insurance industry, petrochemical
industry, power industry, environmental protection, transportation, and vehicle
management etc. |
Product panels

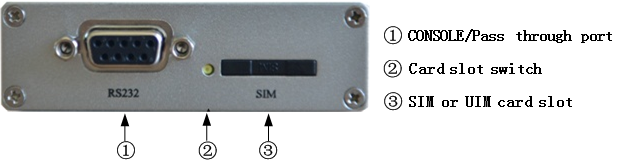

Figure 1: rear panel

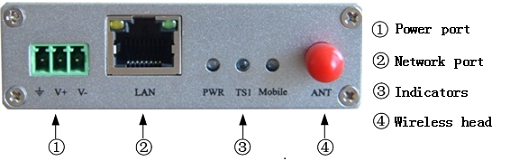

Figure 2: front panel
Specifications
Type of network
|
Items
|
Contents
|
|
Network type
|
Support：LTE-TDD、LTE-FDD、TD-SCDAM、WCDMA、EVDO、CDMA1x、EDGE/GPRS/GSM
|
Hardware
|
Items
|
Contents
|
|
CPU
|
Industrial-grade ARM9
embedded processor,，CPU frequency 400MHz
|
|
NAND FLASH
|
1GBit（128M byte）
|
|
SDRAM
|
2*64MBit（2*8M byte）
|
Interface type
|
Items
|
Contents
|
|
LAN Ports
|
1× 100BeseT
|
|
RS232 port
|
v 1 × RS232 serial port, built-in 15KV
ESD protection
v Data bits: 5, 6, 7, 9 bits
v Stop bits: 1, 1.5, 2 bits
v Parity: none parity , even parity, odd
parity, SPACE and MARK parity
v Serial port rate：110~230400bits/s
v Default
parameters: 115200, N, 8, 1
|
|
Status indicators
|
1 ×status indicator PWR; 1 ×
network indicator TS1;1 × wireless signal strength indicator MOBILE
|
|
4G antenna interface
|
Standard SMA
female antenna interface; characteristic impedance 50 Ω
|
|
SIM/UIM interface
|
3.3V/5V
|
|
Power interface
|
KF2EDG3.81 3P, built-in power reverse
protection
|
Power
|
Items
|
Contents
|
|
Power output
|
DC9V----24V/2A
|
|
Maximum power
consumption
|
3.5W
|
Physical characteristics
|
Items
|
Contents
|
|
Case
|
Aluminum case
|
|
Dimensions
|
97MM *79MM * 23.5MM
|
|
Net weight
|
0.17kg
|
|
Total weight (including
package)
|
0.77kg
|
Other parameters
|
Items
|
Contents
|
|
Operating temperature
|
-40℃～85℃
|
|
Operating humidity
|
≤85%
|
Functions
|
Basic functions
|
Routing management
|
Supports static routing; multiple
routing tables are available.
|
|
Parameter resetting
|
Gives a command to reset the
factory parameter settings.
|
|
PPP protocol
|
v Supports PAP/CHAP/MS-CHAP
authentication protocol
v Supports IP address
negotiation and fixed allocation from center
v Supports APN
configuration
v Supports MPPC/MPPE
|
|
Automatic dial
|
Supports automatic reconnecttion
|
|
Dial-On-Demand
|
Supports Dial-On-Demand
|
|
Supports DTU function
|
Serial to Ethernet protocol
|
|
Authentication
|
PAP/CHAP/MS-CHAP
|
|
Equipment maintenance
|
v Supports import and export
v Supports tftp upgrade
|
|
Network functions
|
Supports IP address and MAC binding
|
|
Supports DHCP service
|
|
Supports TELENT server and client
|
|
DNAT/SNAT/static NAT
|
|
Monitors Internet traffic
|
|
Supports Ethernet ports connection
and duplex mode
|
|
Supports TRACEROUTE
|
|
Supports Cisco compatible ACL
function
|
|
Supports DNS, DDNS client
configuration
|
|
Supports VRRP
|
|
Supports PPPOE protocol, PPTP
protocol, L2TP protocol
|
|
Supports GRE protocol
|
|
Supports Qos speed limit
|
|
Supports DMZ port mapping
|
|
Supports multiple IP setting
|
|
VPN Functions
|
IPSec
|
IPSec server
|
|
IPSec client
|
|
IKE automatic key management
|
|
Supports AH and ESP
|
|
Supports AES/128, AES/192, AES/256, DES, 3DES
encryption algorithm
|
|
Supports SHA, MD5 authentication algorithm
|
|
PFS Group 1,Group 2,Group 5
|
|
IPsec NAT Traversal
|
|
Supports DPD link-keep-alive
|
|
Supports main mode and aggressive
mode
|
|
|
|
|
|
|
|
