| R2641-L
is designed in accordance with customers’ requirements and characteristics of
businesses and industries. R2641-L is a 4G wireless router based on 4G network
for remote data transmission. It can fully meet the networking needs of M2M.
R2641-L is simple to install and use and easy to maintain. It can be widely
used in many industries including financial industry, insurance industry,
petrochemical industry, power industry, environmental protection,
transportation, and vehicle management etc. |
Product panels

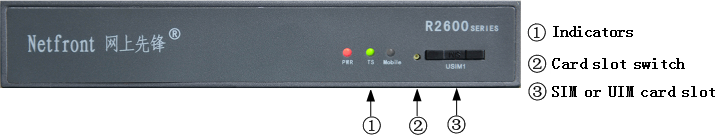

Figure 1:
front panel

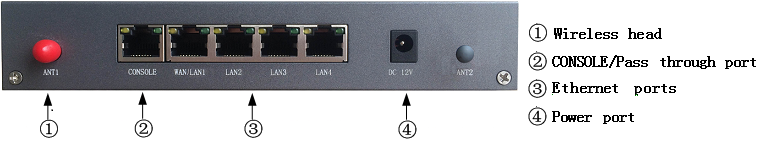

Figure 2: rear panel
Specifications
type of network
|
Items
|
Contents
|
|
Network type
|
Support：LTE-TDD、LTE-FDD、TD-SCDAM、WCDMA、EVDO、
CDMA1x、EDGE/GPRS/GSM
|
Hardware
|
Items
|
Contents
|
|
CPU
|
Industrial-grade ARM9
embedded processor,，CPU frequency 400MHz
|
|
NAND FLASH
|
1GBit（128M byte）
|
|
SDRAM
|
2*64MBit（2*8M byte）
|
Interface type
|
Items
|
Contents
|
|
LAN Ports
|
4 × 100BeseT
|
|
CONSOLE Port
|
v 1×RJ45 CONSOLE port, built-in 15KV ESD
protection
v Data bits: 5, 6, 7, 9 bits
v Stop bits: 1, 1.5, 2 bits
v Parity: none parity , even parity, odd
parity
v Serial port rate: 110~230400bps
v Default parameters: 115200, N, 8, 1
|
|
Status indicators
|
1 × PWR indicator; 2 × status
indicator TS1, TS2; 1 × wireless internet indicator MOBILE
|
|
4G antenna interface
|
Standard SMA
female antenna interface, characteristic impedance 50 Ω
|
|
SIM/UIM interface
|
3.3V/5V
|
|
Power interface
|
Standard 3-core locomotive power socket, built-in reverse
power protection
|
Power
|
Items
|
Contents
|
|
Power output
|
DC9V----24V/2A
|
|
Maximum power
consumption
|
3.5W
|
Physical characteristics
|
Items
|
Contents
|
|
Case
|
Steel case
|
|
Dimensions
|
180MM * 109MM * 32MM
|
|
Net weight
|
0.5kg
|
|
Total weight (including
package)
|
1.1kg
|
Other parameters
|
Items
|
Contents
|
|
Operating temperature
|
-40℃～85℃
|
|
Operating humidity
|
≤85%
|
Functions
|
Basic functions
|
Routing management
|
Supports static routing; multiple
routing tables are available.
|
|
Parameter resetting
|
Command to reset the factory
parameter settings.
|
|
PPP protocol
|
v Supports
PAP/CHAP/MS-CHAP authentication protocol
v Supports IP address
negotiation and fixed allocation from center
v Supports APN
configuration
v Supports MPPC/MPPE
|
|
Automatic dial
|
Supports automatic reconnecttion
|
|
Dial-On-Demand
|
Supports Dial-On-Demand
|
|
Supports DTU function
|
Serial to Ethernet protocol
|
|
Authentication
|
PAP/CHAP/MS-CHAP
|
|
Equipment maintenance
|
v Supports import and export
v Supports tftp upgrade
|
|
Network functions
|
Supports IP address and MAC binding
|
|
Supports DHCP service
|
|
Supports TELENT server and client
|
|
DNAT/SNAT/static NAT
|
|
Monitors Internet traffic
|
|
Supports Ethernet ports connection
and duplex mode
|
|
Supports TRACEROUTE
|
|
Supports Cisco compatible ACL
function
|
|
Supports DNS, DDNS client
configuration
|
|
Supports VRRP
|
|
Supports PPPOE protocol, PPTP
protocol, L2TP protocol
|
|
Supports GRE protocol
|
|
Supports Qos speed limit
|
|
Supports DMZ port mapping
|
|
Supports multiple IP setting
|
|
Supports link backup
|
|
VPN Functions
|
IPSec
|
IPSec sever
|
|
IPSec client
|
|
IKE automatic key management
|
|
Supports AH and ESP
|
|
Supports AES/128、AES/192、AES/256、DES、3DES encryption
algorithm
|
|
Supports SHA, MD5 authentication algorithm
|
|
PFS Group 1,Group 2,Group 5
|
|
IPsec NAT Traversal
|
|
Supports DPD link-keep-alive
|
|
Supports main mode and aggressive
mode
|
|
|
